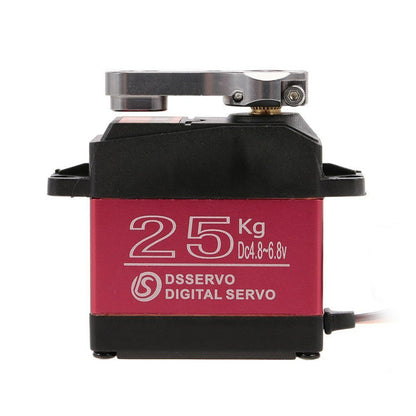

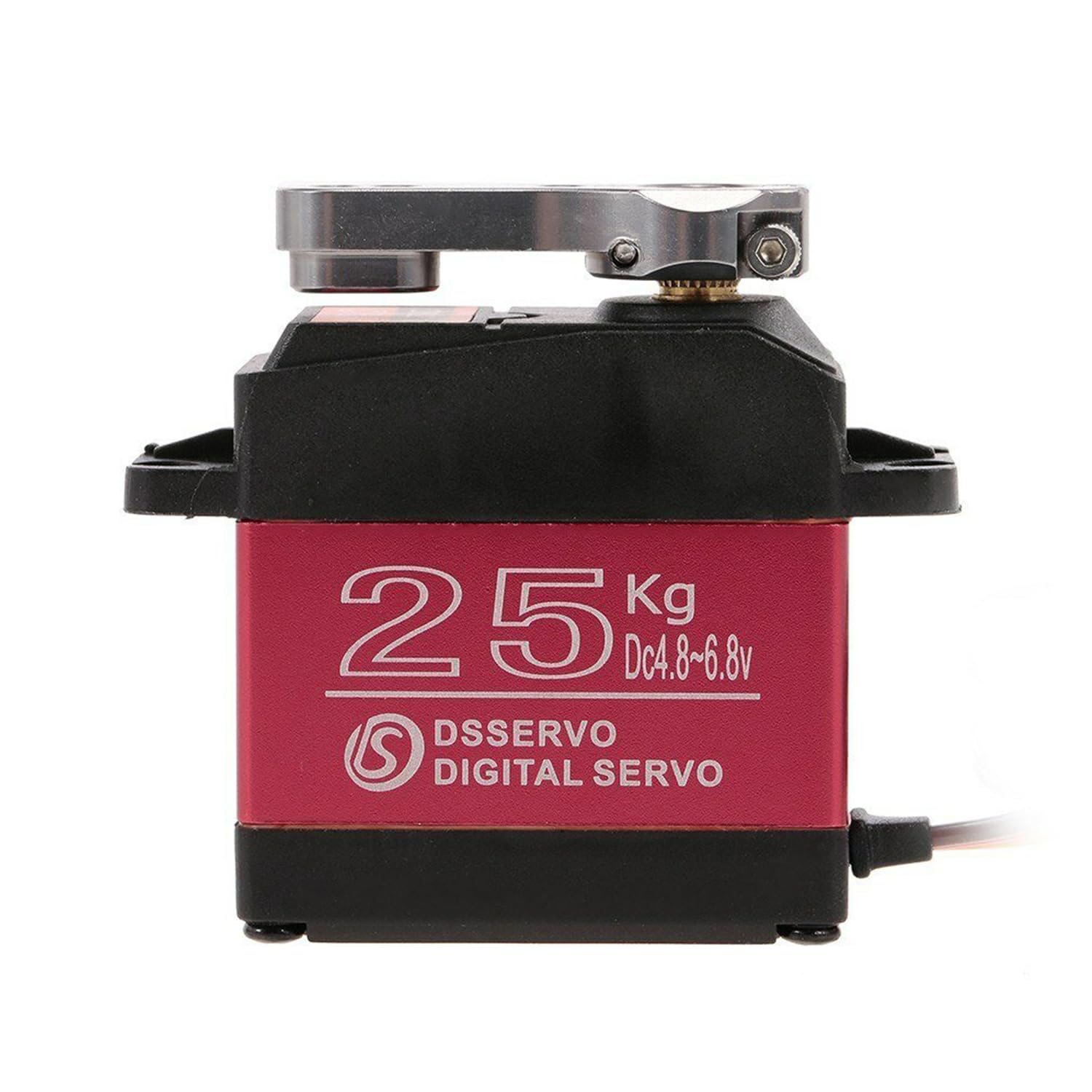

ZOSKAY Servo High Torque Metal Gear Standard Digital Servo 25KG/0.13S 6.8V for 1/8 1/10 RC Cars (Control Angle 180)

Brand: ZOSKAY

Edition: Control Angle 180

Features:

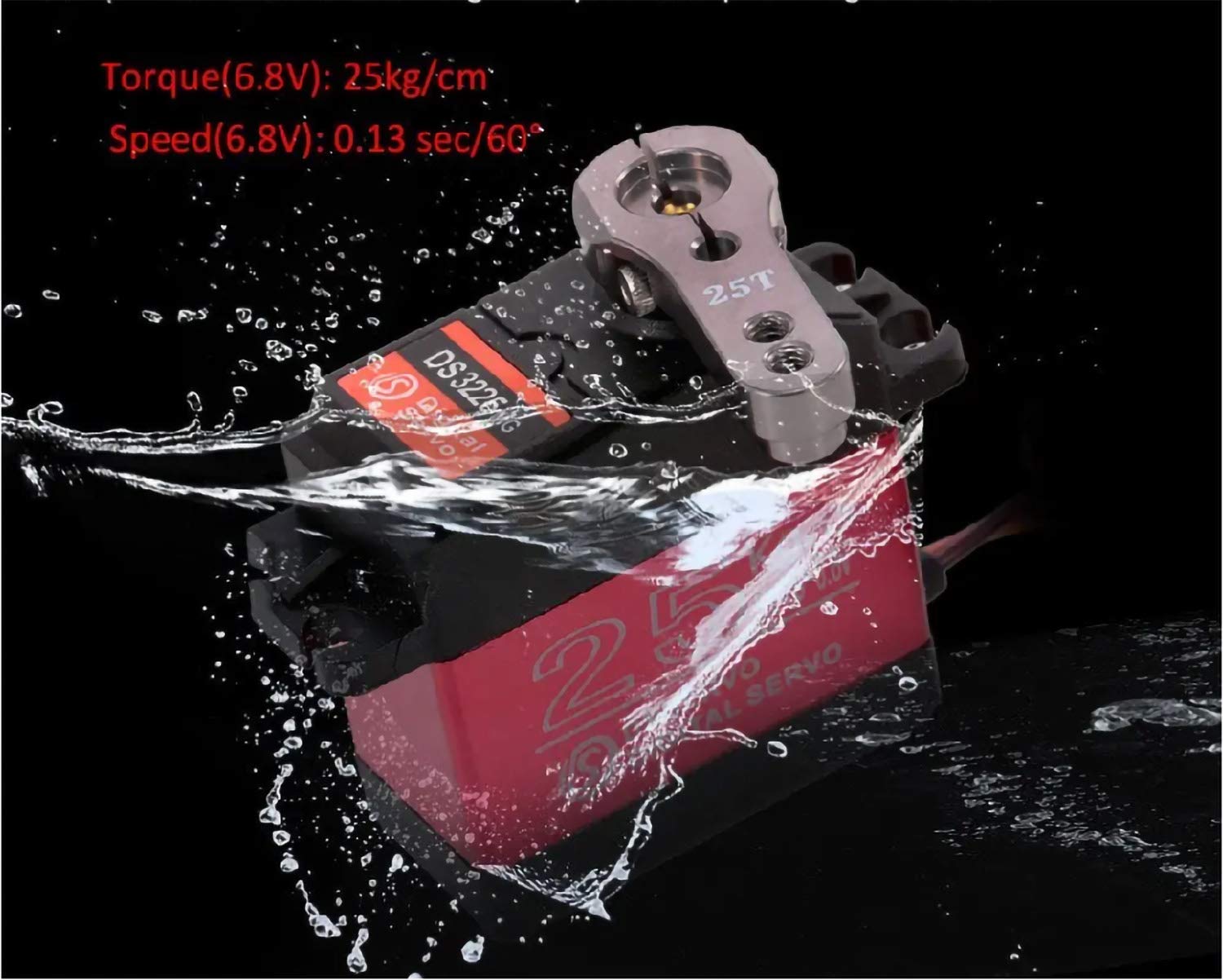

• 25KG servo - maximum torque can up to 25kg.cm (6.8V)
• Digital servo features HV high torque, metal gear, fast heat dissipation, sensitivity and responsiveness. With high quality and performance
• High- metal gear with hard anodizing for better accuracy CNC aluminium middle shell enhances heat dissipation and longer service life
• High Quality - equipped with strong copper & aluminum gears,CNC aluminium middle Shell，made of first-grade material
• Standard servo size:40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in) 1/8 1/10 scale car

Binding: Toy

model number: AY

Part Number: AY

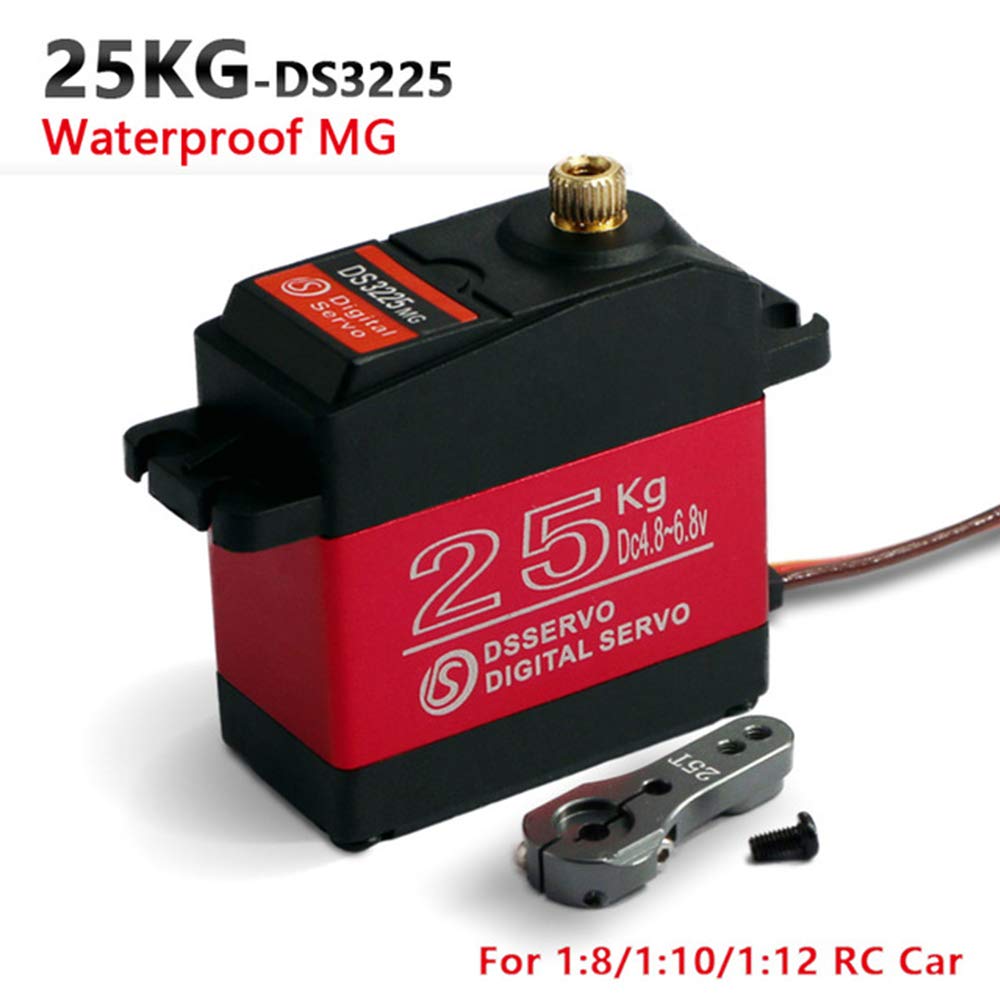

Details: Item: DS3225 25KG Large Torque Digital Servo
Stall Torque (5V): 21 kg/cm (291.5oz/in)
Stall Torque (6.8V): 24.5 kg/cm (340.1 oz/in)
Speed : 0.15 sec/60°(5V) / 0.13 sec/60°(6.8V)
Operating Voltage: 4.8 ~ 6.8 DC Volts
Dead brand: 3μs
Weight: 60 g (2.12 oz)
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Working frequence: 50-333Hz

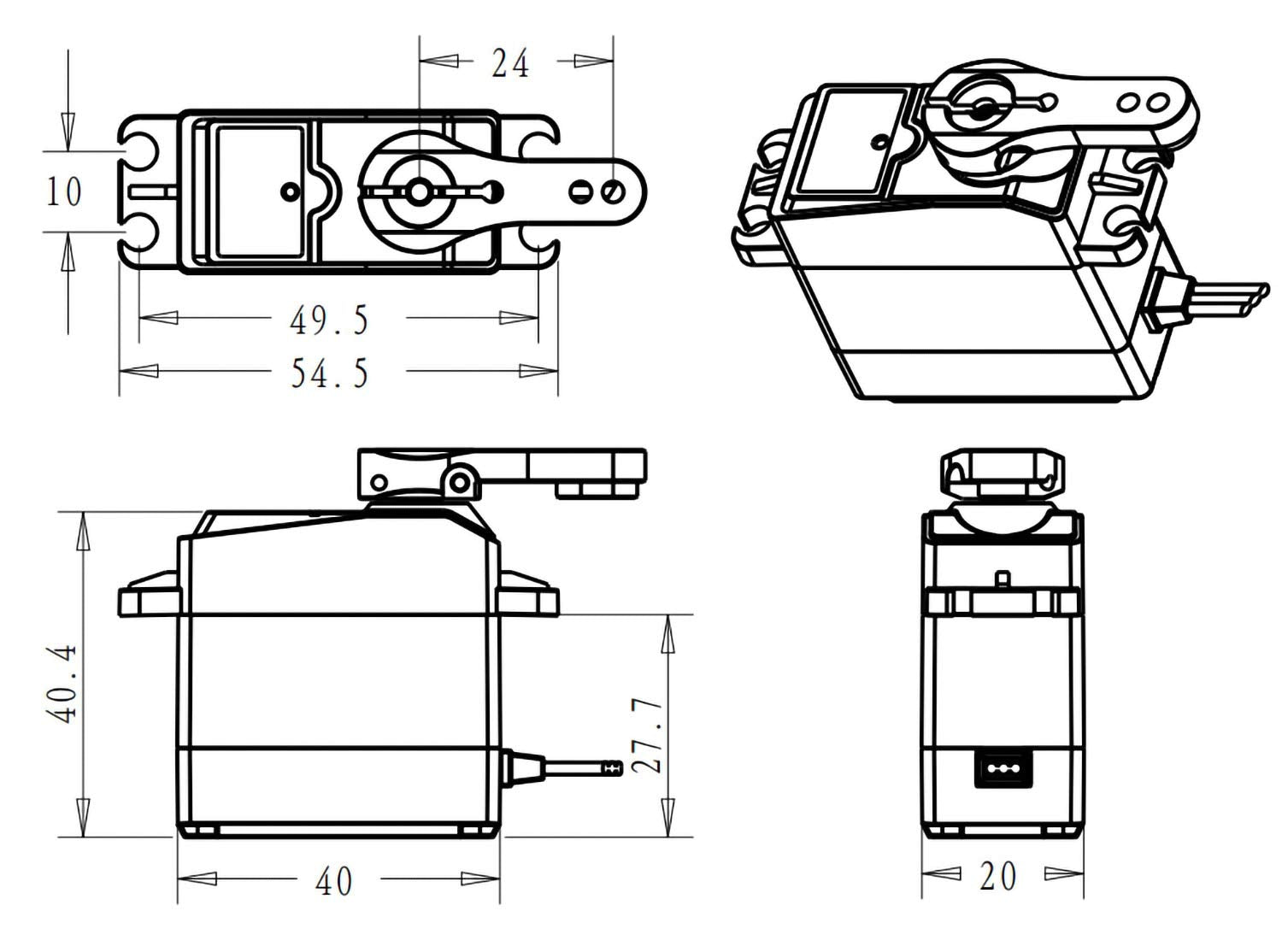

Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)

Features:
- High performance digital standard servo
- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell
- Dual ball bearings

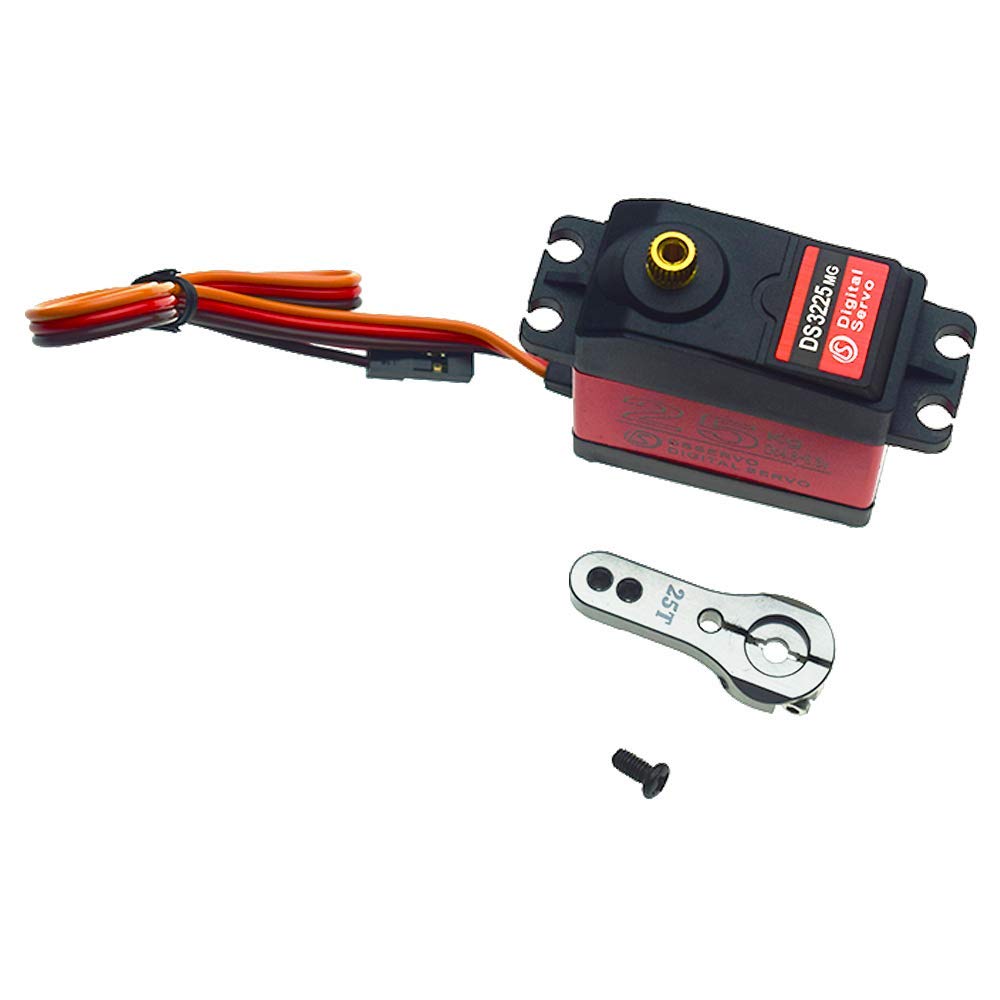

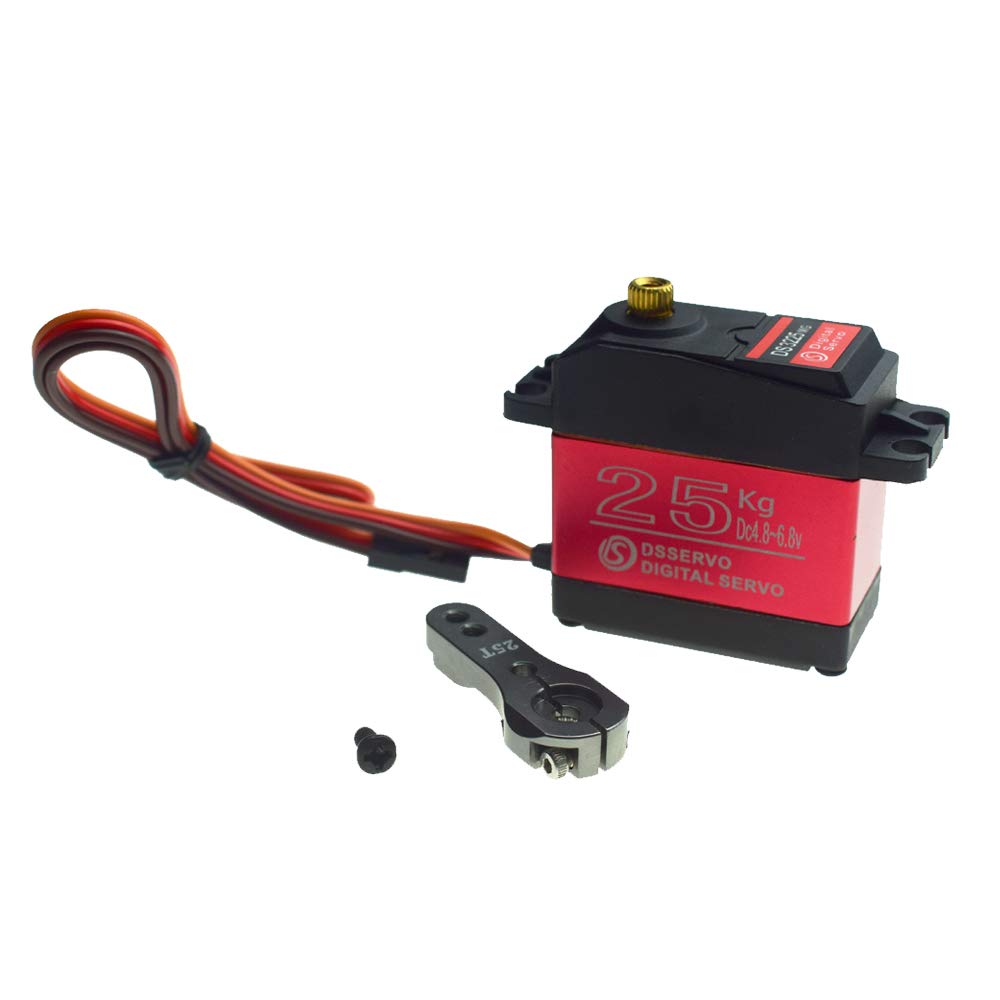

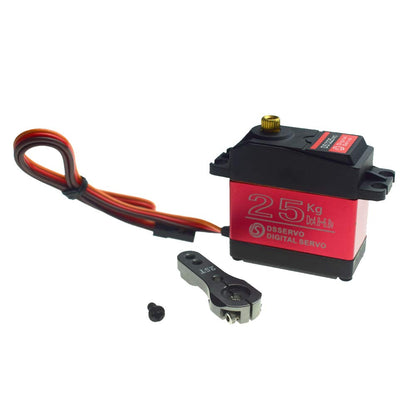

Package Included:
1 x DS3225 25KG Large Torque Digital Servo

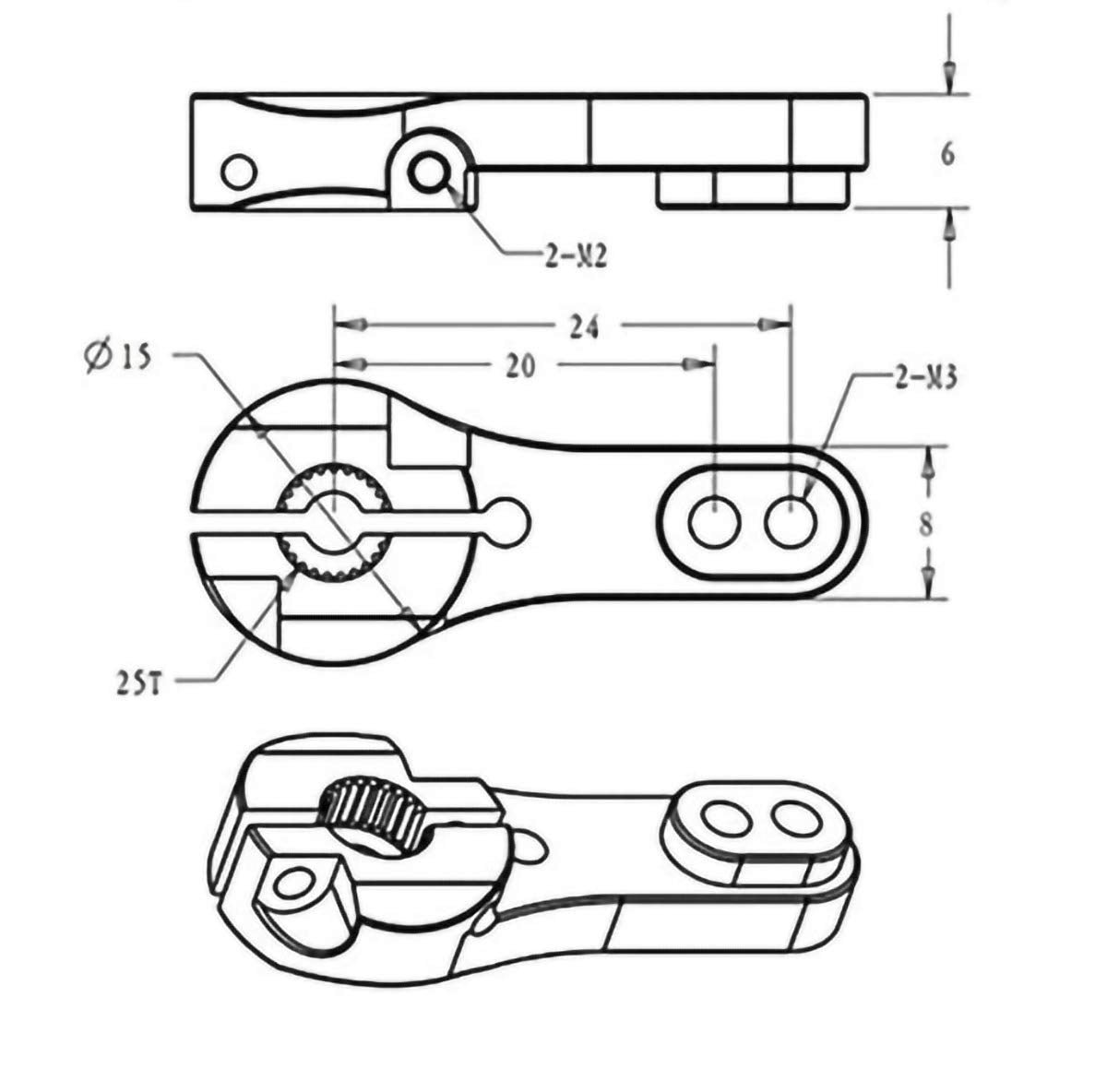

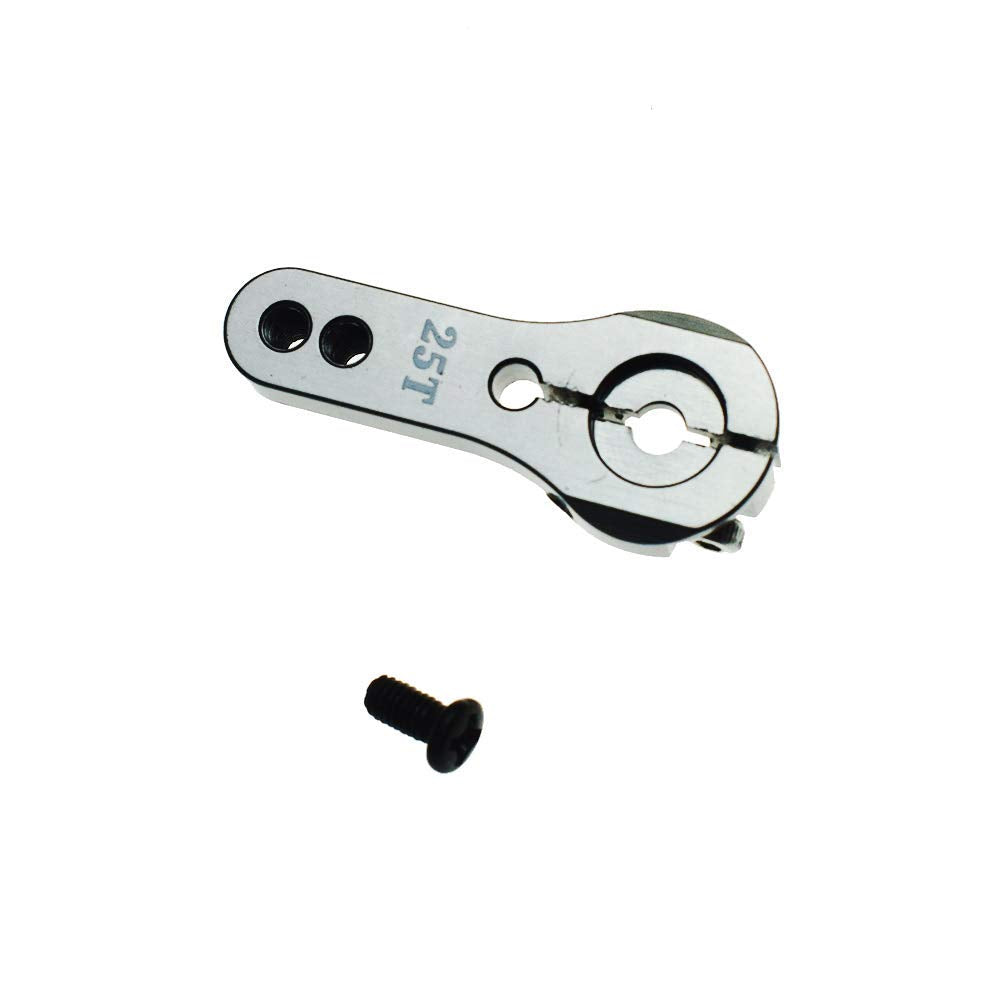

1 x 25T Adjustable metal servo arm
We aslo have:
▶35KG Coreless servo 180°, ASIN: B07SBYZ4G5
▶35KG Coreless servo 270°,ASIN: B07S9XZYN2
▶25KG Control Angle 270°, ASIN: B07GLNTXML
▶20KG Control Angle 270°, ASIN: B01MU7TQV8
▶20KG Control Angle 270°, ASIN: B01N0XZOZU
▶20kg Control Angle 180°(PRO Version), ASIN: B07KRMJTH5
▶20kg Control Angle 270°(PRO Version), ASIN: B07KRX4K3Z
▶60kg Control Angle 180°, ASIN: B07Q3Z4SLS
▶60kg Control Angle 270°, ASIN: B07K48FQ1N

Package Dimensions: 4.8 x 4.1 x 0.9 inches
